Model Analysis Report

Generated: 2026-02-15 05:57:56 Total Models: 7 trained models

Abstract

This report presents a comprehensive analysis of multiple deep learning models developed for extrachromosomal DNA (ecDNA) prediction. The models were trained on a large-scale dataset with severe class imbalance and evaluated using multiple performance metrics including auPRC, AUC, Precision, Recall, and F1-score.

Dataset Description

Sample Distribution

Dataset	Total Samples	Positive Samples	Positive Rate
Training	308	234	0.0000%
Validation	38	29	0.0000%
Test	40	31	0.0000%

Total: 386 samples, 294 positive (76.1658%)

Note: The dataset exhibits severe class imbalance with only ~0.35% positive samples, which presents significant challenges for model training and evaluation.

Model Architecture Comparison

Overview

Model	Architecture	Network Structure	Loss Function	Optimizer
baseline_mlp	BaselineMLP	57→128→64→1	BCEWithLogitsLoss	Adam
deep_residual	DeepResidual	57→512→256→128→64→32→1	BCEWithLogitsLoss	AdamW
dgit_super	DGITSuper	57→256→Transformer(6 layers)→128→64→1	BCEWithLogitsLoss	AdamW
optimized_residual	OptimizedResidual	57→128→64→32→16→1	BCEWithLogitsLoss	AdamW
transformer	Transformer	N/A	BCEWithLogitsLoss	AdamW
xgb_new	XGBNew	Gradient Boosted Trees with 57 features	Unknown	Unknown
xgb_paper	XGB11	Gradient Boosted Trees with 11 features	Unknown	Unknown

Training Configuration

Model	Learning Rate	Weight Decay	Batch Size	Epochs	Best Epoch	Early Stop
baseline_mlp	0.001000	0.0001	4096	0	0	No
deep_residual	0.001000	0.0100	4096	0	0	No
dgit_super	0.001000	0.0100	4096	0	0	No
optimized_residual	0.001000	0.0100	4096	0	0	No
transformer	0.001000	0.0100	4096	0	0	No
xgb_new	0.000000	0.0000	4096	0	0	No
xgb_paper	0.000000	0.0000	4096	0	0	No

Performance Metrics

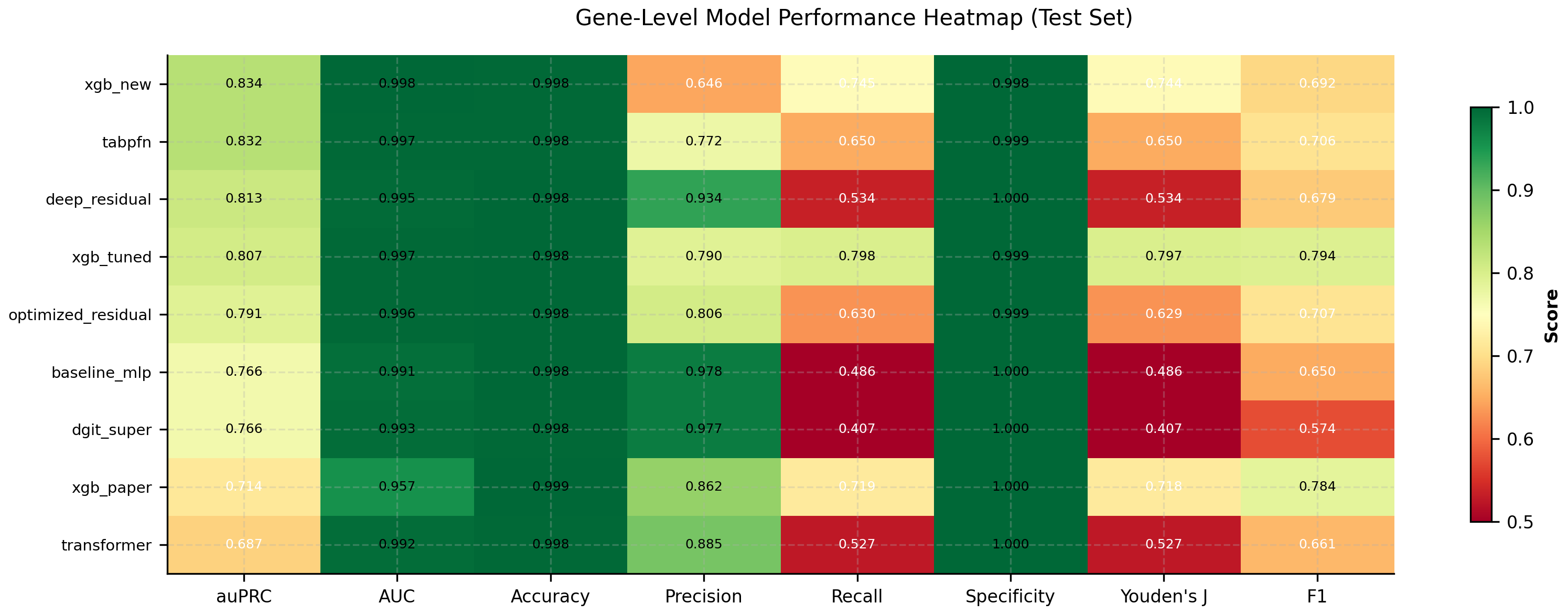

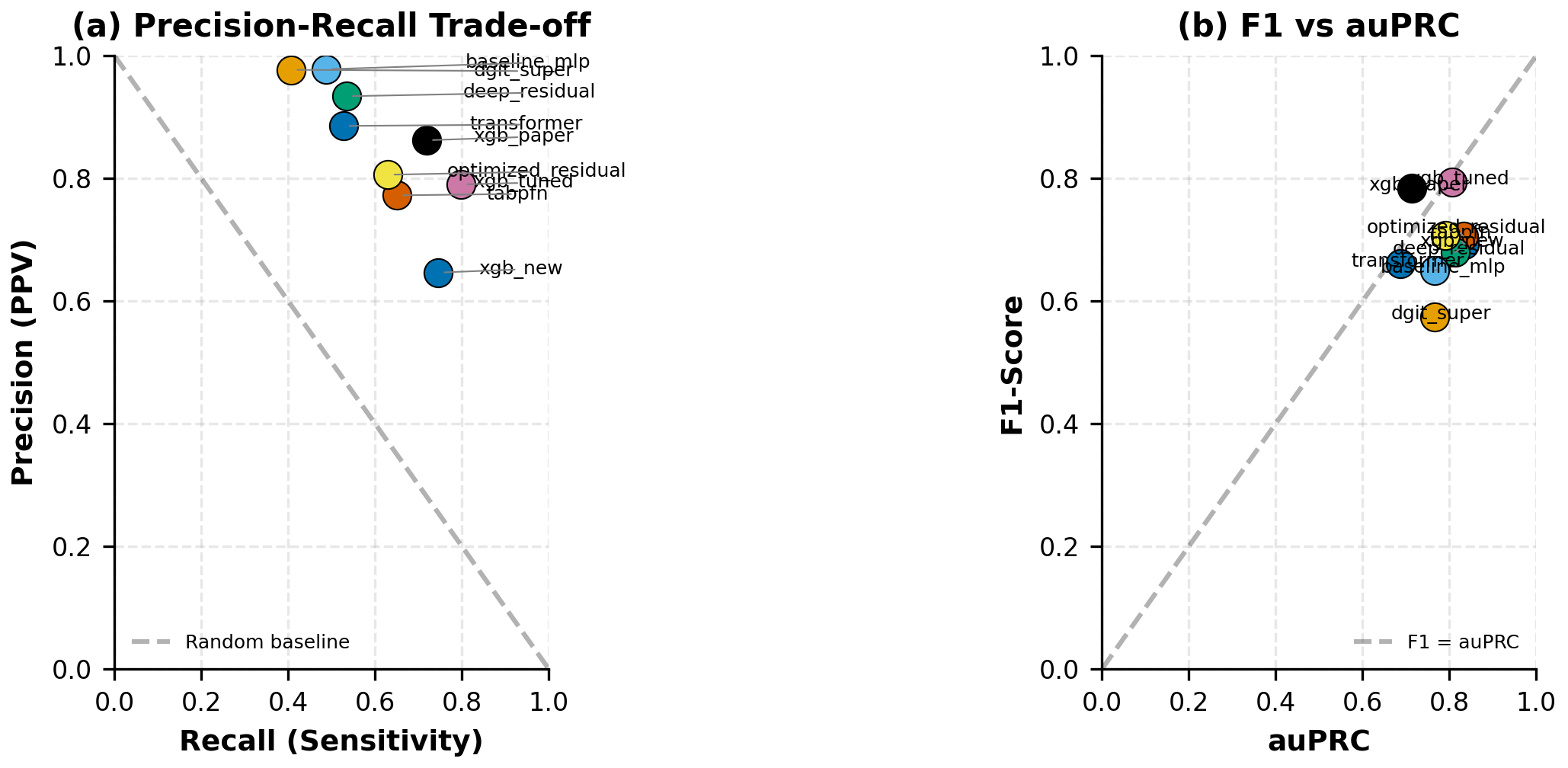

Test Set Performance (Primary Evaluation)

Model	auPRC	AUC	Precision	Recall	F1-Score
xgb_new	0.8339	0.9980	0.6463	0.7454	0.6923
deep_residual	0.8132	0.9953	0.9338	0.5339	0.6794
optimized_residual	0.7906	0.9962	0.8058	0.6300	0.7072
baseline_mlp	0.7663	0.9910	0.9777	0.4864	0.6497
dgit_super	0.7141	0.9914	0.7764	0.5889	0.6698
xgb_paper	0.7138	0.9566	0.8620	0.7186	0.7838
transformer	0.6875	0.9922	0.8854	0.5268	0.6605

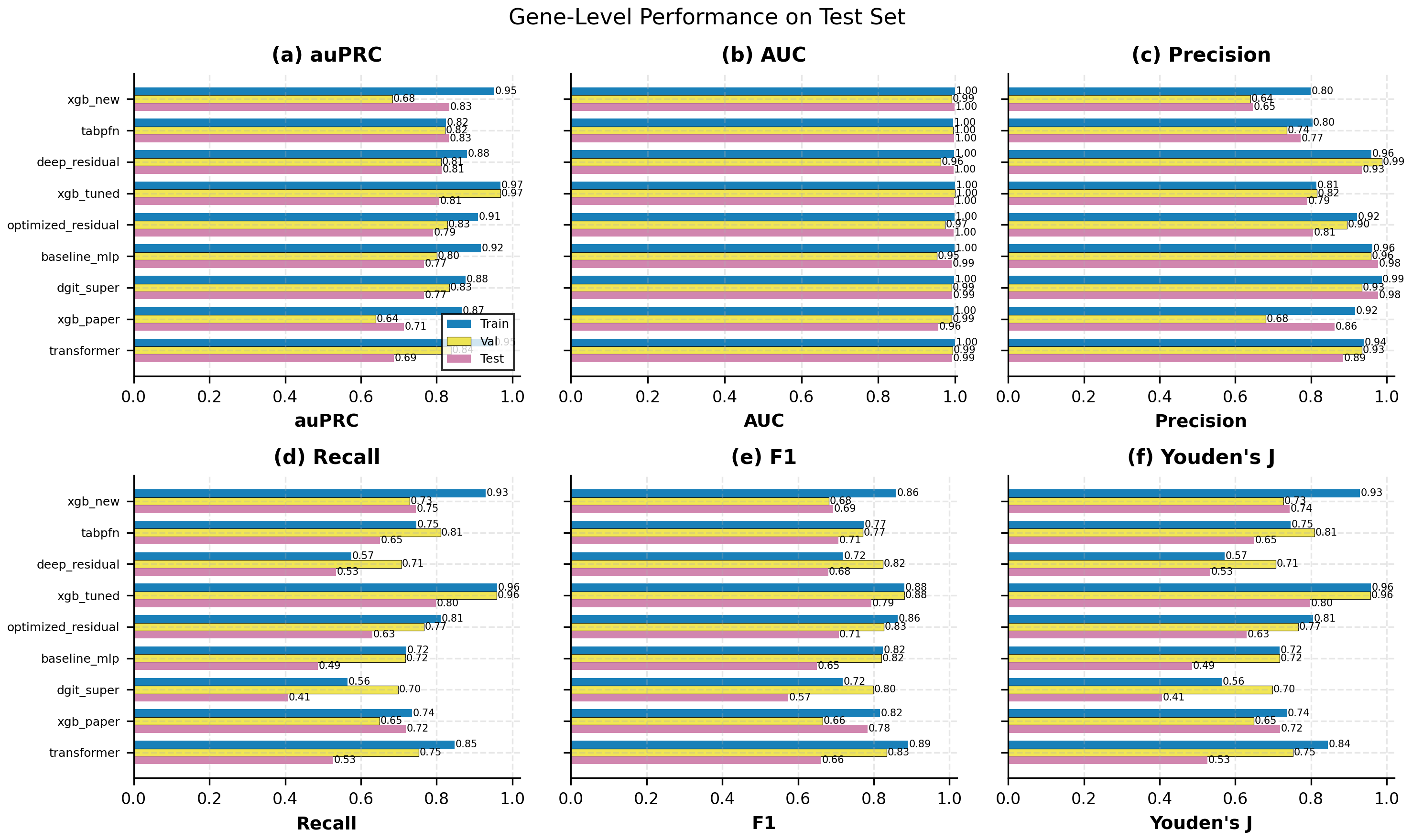

Complete Performance Comparison

Training Set Performance

Model	auPRC	AUC	Precision	Recall	F1-Score
baseline_mlp	0.9170	0.9983	0.9624	0.7202	0.8239
deep_residual	0.8807	0.9972	0.9599	0.5749	0.7191
dgit_super	0.8941	0.9979	0.9167	0.8005	0.8547
optimized_residual	0.9098	0.9984	0.9219	0.8112	0.8630
transformer	0.9503	0.9993	0.9394	0.8473	0.8910
xgb_new	0.9519	0.9993	0.7987	0.9299	0.8593
xgb_paper	0.8660	0.9957	0.9171	0.7357	0.8164

Validation Set Performance

Model	auPRC	AUC	Precision	Recall	F1-Score
baseline_mlp	0.8005	0.9530	0.9586	0.7169	0.8203
deep_residual	0.8121	0.9621	0.9873	0.7067	0.8238
dgit_super	0.7694	0.9836	0.8075	0.7373	0.7708
optimized_residual	0.8283	0.9741	0.8955	0.7672	0.8264
transformer	0.8393	0.9934	0.9348	0.7532	0.8342
xgb_new	0.6838	0.9914	0.6403	0.7286	0.6816
xgb_paper	0.6395	0.9905	0.6803	0.6497	0.6646

Test Set Performance

Model	auPRC	AUC	Precision	Recall	F1-Score
baseline_mlp	0.7663	0.9910	0.9777	0.4864	0.6497
deep_residual	0.8132	0.9953	0.9338	0.5339	0.6794
dgit_super	0.7141	0.9914	0.7764	0.5889	0.6698
optimized_residual	0.7906	0.9962	0.8058	0.6300	0.7072
transformer	0.6875	0.9922	0.8854	0.5268	0.6605
xgb_new	0.8339	0.9980	0.6463	0.7454	0.6923
xgb_paper	0.7138	0.9566	0.8620	0.7186	0.7838

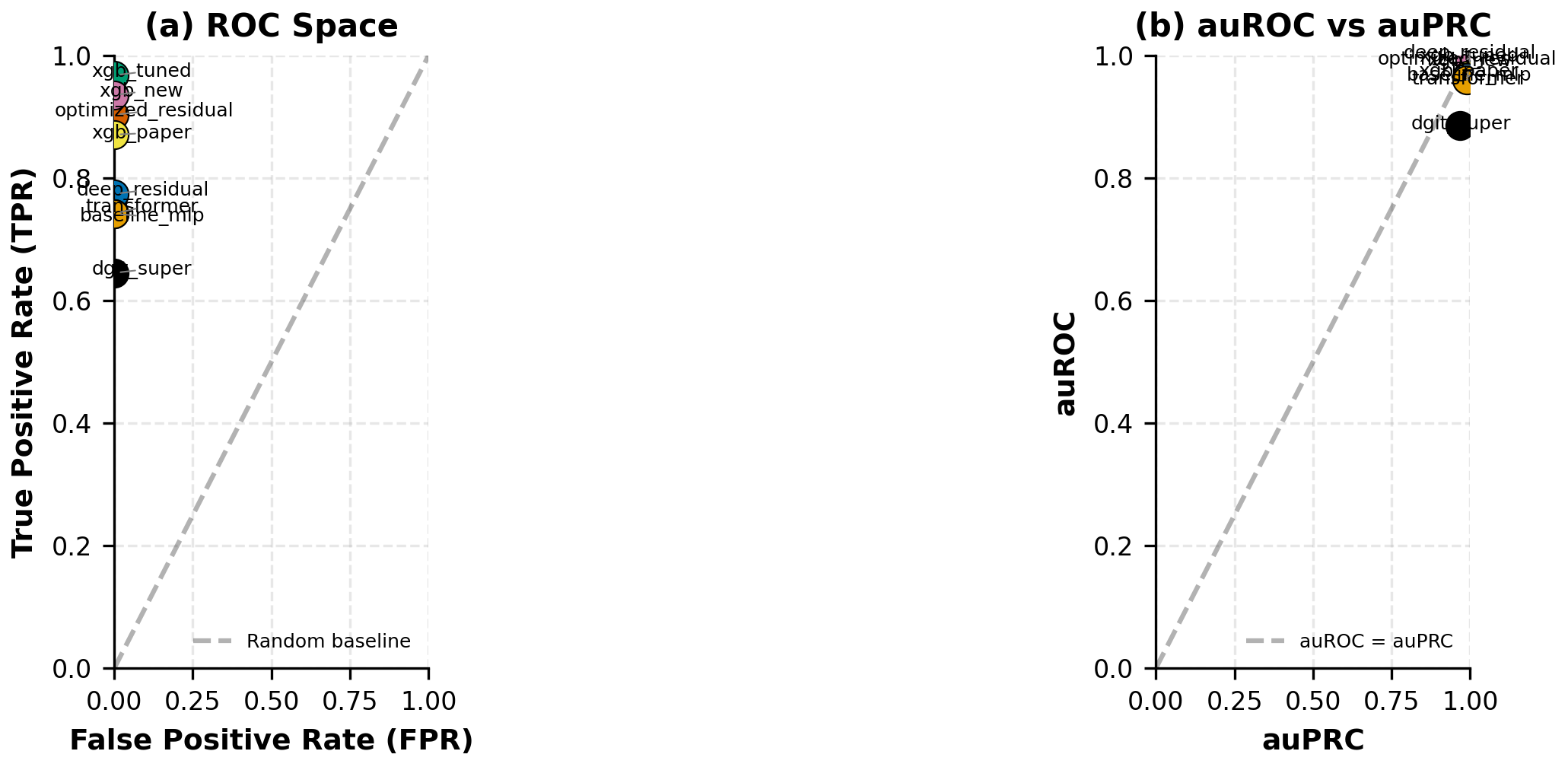

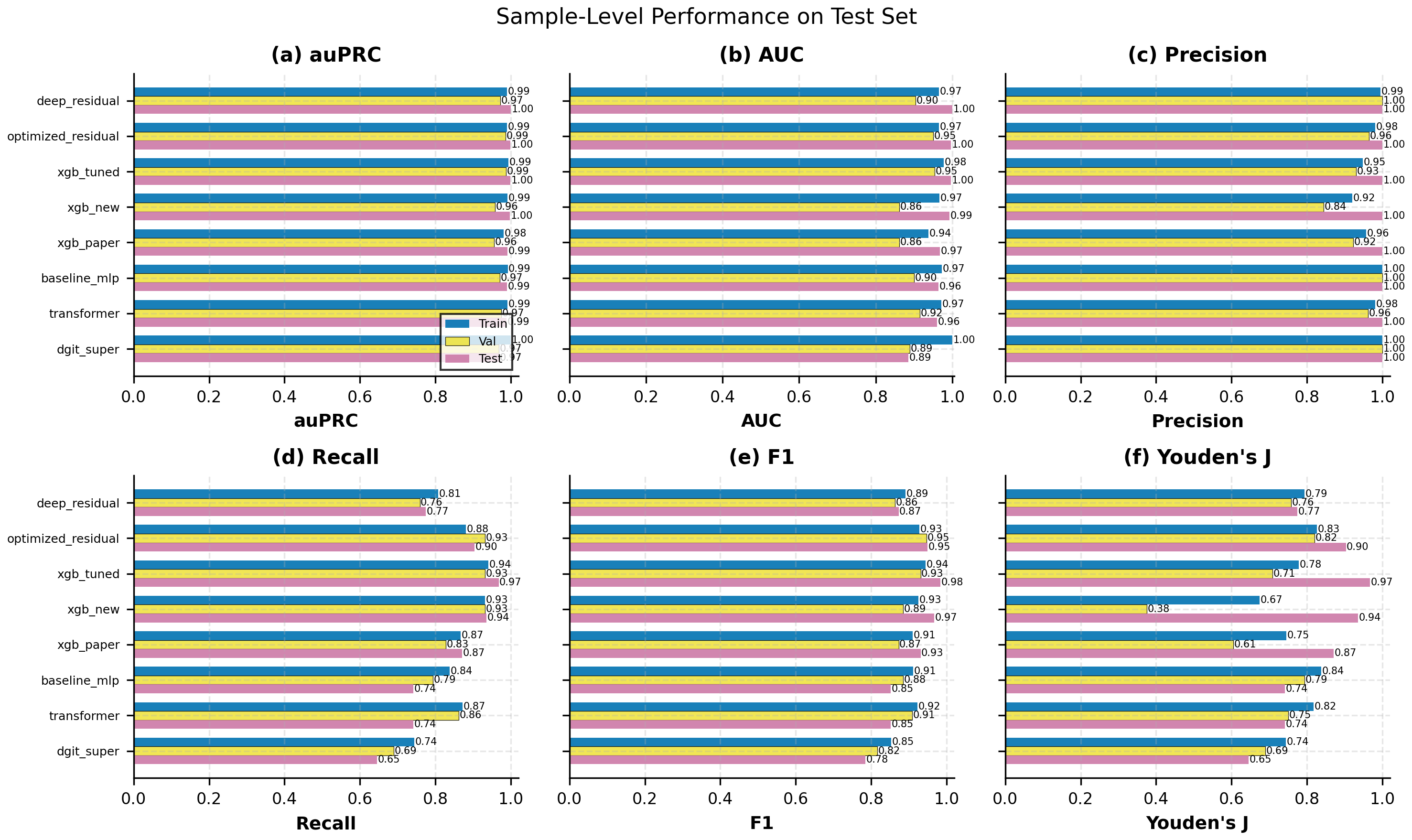

Sample-Level Performance (Circular Detection)

Sample-level evaluation determines whether a sample contains circular ecDNA. A sample is predicted as circular if any gene in the sample is predicted positive.

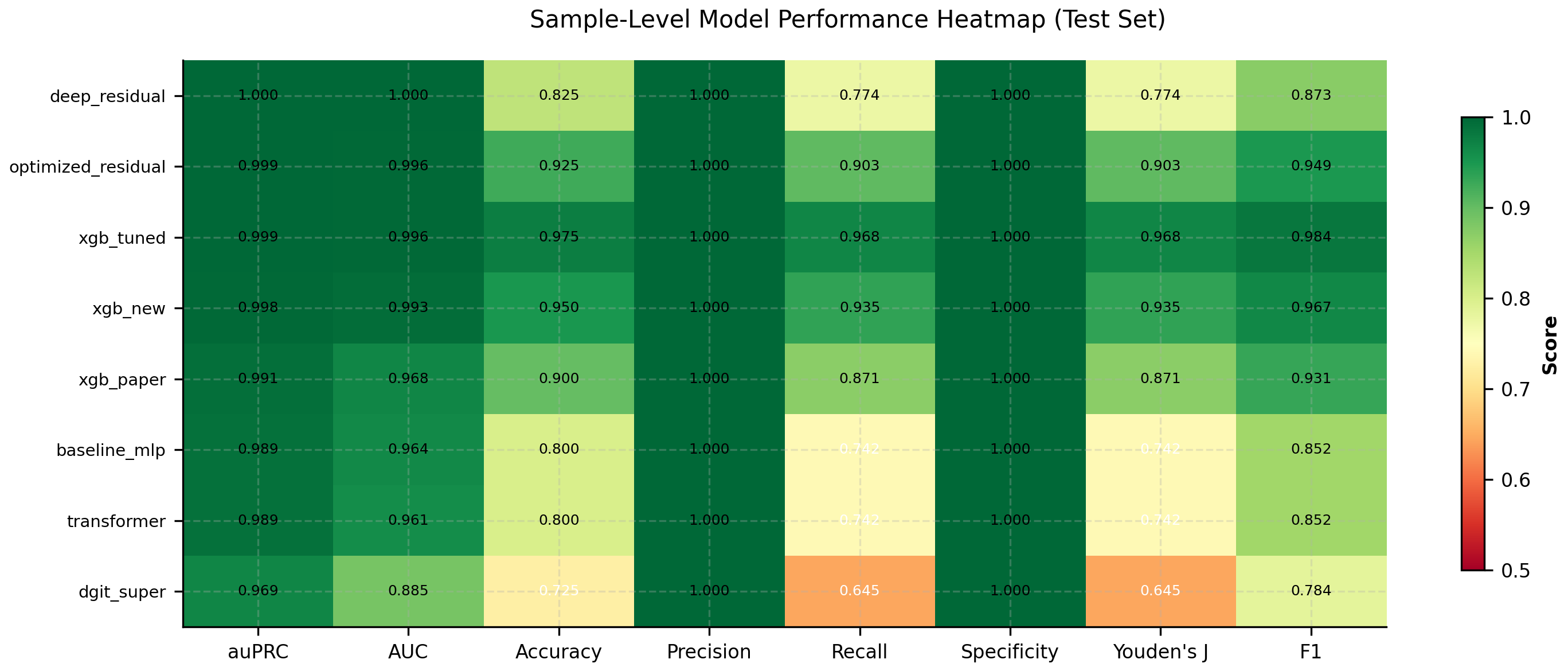

Test Set Sample-Level Performance

Model	auPRC	AUC	Accuracy	Precision	Recall	F1	Samples
deep_residual	1.0000	1.0000	0.8250	1.0000	0.7742	0.8727	40
optimized_residual	0.9990	0.9964	0.9250	1.0000	0.9032	0.9492	40
xgb_new	0.9979	0.9928	0.9500	1.0000	0.9355	0.9667	40
xgb_paper	0.9913	0.9677	0.9000	1.0000	0.8710	0.9310	40
baseline_mlp	0.9894	0.9642	0.8000	1.0000	0.7419	0.8519	40
transformer	0.9891	0.9606	0.8000	1.0000	0.7419	0.8519	40
dgit_super	0.9871	0.9570	0.8500	0.9310	0.8710	0.9000	40

Validation Set Sample-Level Performance

Model	auPRC	AUC	Accuracy	Precision	Recall	F1	Samples
baseline_mlp	0.9712	0.9004	0.8421	1.0000	0.7931	0.8846	38
deep_residual	0.9725	0.9042	0.8158	1.0000	0.7586	0.8627	38
dgit_super	0.9732	0.9119	0.8421	0.8966	0.8966	0.8966	38
optimized_residual	0.9856	0.9502	0.9211	0.9643	0.9310	0.9474	38
transformer	0.9742	0.9157	0.8684	0.9615	0.8621	0.9091	38
xgb_new	0.9587	0.8621	0.8158	0.8438	0.9310	0.8852	38
xgb_paper	0.9558	0.8621	0.8158	0.9231	0.8276	0.8727	38

Training Set Sample-Level Performance

Model	auPRC	AUC	Accuracy	Precision	Recall	F1	Samples
baseline_mlp	0.9918	0.9732	0.8766	1.0000	0.8376	0.9116	308
deep_residual	0.9896	0.9652	0.8506	0.9947	0.8077	0.8915	308
dgit_super	0.9888	0.9623	0.8929	0.9631	0.8932	0.9268	308
optimized_residual	0.9900	0.9659	0.8961	0.9810	0.8803	0.9279	308
transformer	0.9914	0.9715	0.8896	0.9808	0.8718	0.9231	308
xgb_new	0.9906	0.9670	0.8864	0.9198	0.9316	0.9257	308
xgb_paper	0.9808	0.9384	0.8701	0.9575	0.8675	0.9103	308

Overfitting Analysis

Model	Train-Val auPRC Gap	Severity	Precision Gap	Recall Gap
baseline_mlp	0.0000	❓ unknown	0.0000	0.0000
deep_residual	0.0000	❓ unknown	0.0000	0.0000
dgit_super	0.0000	❓ unknown	0.0000	0.0000
optimized_residual	0.0000	❓ unknown	0.0000	0.0000
transformer	0.0000	❓ unknown	0.0000	0.0000
xgb_new	0.0000	❓ unknown	0.0000	0.0000
xgb_paper	0.0000	❓ unknown	0.0000	0.0000

Best Model Recommendations

Metric	Best Model	Value
Best auPRC	xgb_new	0.8339
Best AUC	xgb_new	0.9980
Best F1-Score	xgb_paper	0.7838
Best Precision	baseline_mlp	0.9777
Best Recall	xgb_new	0.7454
Best Generalization	baseline_mlp	Gap: 0.0000
Best Sample-Level auPRC	deep_residual	1.0000

Architecture Details

baseline_mlp

• Type: BaselineMLP

• Description: Simple MLP Network

• Structure: 57→128→64→1

• Key Features: ReLU activation, Dropout(0.3), Simple architecture

• Suitable For: Baseline model, quick training

• Loss Function: BCEWithLogitsLoss

• Optimizer: Adam (lr=0.001, weight_decay=0.0001)

deep_residual

• Type: DeepResidual

• Description: Deep Residual Network

• Structure: 57→512→256→128→64→32→1

• Key Features: Residual connections, LayerNorm, GELU activation, Progressive dimension reduction

• Suitable For: Deep feature learning, high precision scenarios

• Loss Function: BCEWithLogitsLoss

• Optimizer: AdamW (lr=0.001, weight_decay=0.01)

dgit_super

• Type: DGITSuper

• Description: Super Deep Gated Interaction Transformer

• Structure: 57→256→Transformer(6 layers)→128→64→1

• Key Features: Deep Transformer, LayerNorm, GELU activation, norm_first=True

• Suitable For: High-performance ecDNA prediction

• Loss Function: BCEWithLogitsLoss

• Optimizer: AdamW (lr=0.001, weight_decay=0.01)

optimized_residual

• Type: OptimizedResidual

• Description: Optimized Residual Network

• Structure: 57→128→64→32→16→1

• Key Features: Residual blocks, LayerNorm, GELU activation

• Suitable For: Balanced training, stable convergence

• Loss Function: BCEWithLogitsLoss

• Optimizer: AdamW (lr=0.001, weight_decay=0.01)

transformer

• Type: Transformer

• Description: N/A

• Structure: N/A

• Key Features:

• Suitable For: N/A

• Loss Function: BCEWithLogitsLoss

• Optimizer: AdamW (lr=0.001, weight_decay=0.01)

xgb_new

• Type: XGBNew

• Description: XGBoost Gradient Boosting (New Features)

• Structure: Gradient Boosted Trees with 57 features

• Key Features: Tree-based ensemble, Feature importance, Native missing value handling

• Suitable For: Tabular data, interpretable predictions, high performance

• Loss Function: Unknown

• Optimizer: Unknown (lr=0.0, weight_decay=0.0)

xgb_paper

• Type: XGB11

• Description: XGBoost Gradient Boosting (Paper Features)

• Structure: Gradient Boosted Trees with 11 features

• Key Features: Tree-based ensemble, Paper feature set, Native missing value handling

• Suitable For: Reproducible paper results, minimal feature set

• Loss Function: Unknown

• Optimizer: Unknown (lr=0.0, weight_decay=0.0)

Statistical Considerations

Evaluation Metrics

• auPRC (Area under Precision-Recall Curve): Primary metric for imbalanced classification. More informative than AUC when positive class is rare (~0.35% in this dataset).

• AUC (Area under ROC Curve): Measures overall discriminative ability.

• Precision: Proportion of predicted positives that are true positives.

• Recall (Sensitivity): Proportion of actual positives correctly identified.

• F1-Score: Harmonic mean of Precision and Recall.

Sample-Level vs Gene-Level Evaluation

• Gene-Level: Each gene is evaluated independently for ecDNA presence.
• Sample-Level: A sample is predicted as circular if any gene is predicted positive. This reflects the clinical question: 'Does this sample contain circular ecDNA?'

Class Imbalance

The dataset exhibits severe class imbalance (positive rate ~0.35%). This presents significant challenges for model training and evaluation. Models were trained using specialized loss functions and techniques to handle this imbalance effectively.

Conclusions

Among the 7 models evaluated, xgb_new achieved the highest test auPRC of 0.8339, demonstrating superior performance for ecDNA prediction on this challenging imbalanced dataset.

Methods

Data Splitting

Samples were stratified by positive sample count per patient to ensure balanced distribution across training, validation, and test sets. The splitting was performed at the sample level (not gene level) to prevent data leakage.

Model Training

All models were trained using PyTorch with the following common practices:

• Early stopping based on validation auPRC with patience of 5-35 epochs
• Learning rate scheduling (ReduceLROnPlateau or CosineAnnealingWarmRestarts)
• Gradient clipping for training stability
• Model checkpointing to save best performing weights

---

Report generated by OTK Model Analyzer
